Types of Common Interfaces in Medical Displays

Connecting vital medical equipment can involve a confusing mess of incompatible cables. This situation creates setup delays and can compromise image quality right when clarity is most needed.

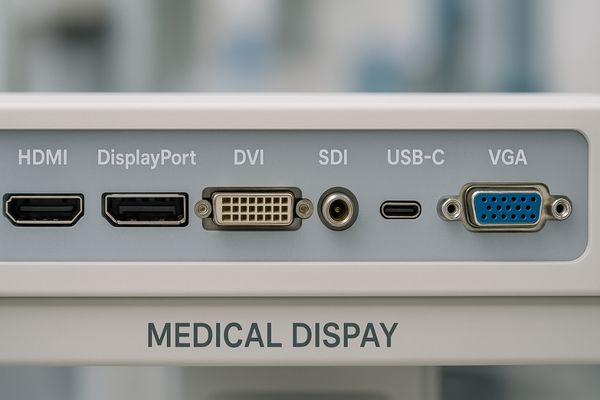

Medical displays use specific interfaces to ensure image quality and system compatibility. Common types include:

• DisplayPort (DP): The top choice for high-resolution surgical and diagnostic imaging due to its high bandwidth.
• HDMI: A versatile and common interface for general multimedia and display connections.
• SDI: Used for long-distance, uncompressed video transmission in professional settings like operating rooms.
• DVI: A reliable older digital standard, often found on legacy medical equipment.
• USB-C: A modern all-in-one solution for video, data, and power, ideal for portable devices.
• Fiber Optic: Provides superior signal integrity over very long distances and in high-interference environments.
• VGA: An older analog interface used for compatibility with legacy devices.**

Understanding the ports on the back of a monitor is not just a technical detail. For hospital administrators, IT professionals, and clinicians, this knowledge is critical for ensuring that new equipment integrates smoothly with existing systems. The right connection maintains signal integrity, delivers the highest possible image quality, and supports a reliable diagnostic workflow. This article will explore the common interfaces found on medical displays¹, their specific uses, and the key factors to consider when building or upgrading a clinical imaging system².

Overview of Interface Types Used in Medical Displays

Mismatched ports between a new display and an existing medical device create immediate setup headaches. This simple incompatibility can delay the use of critical equipment in a clinical setting.

Medical displays utilize both analog interfaces like VGA for legacy systems and digital interfaces such as DVI, HDMI, and DisplayPort for modern high-resolution imaging. The choice depends on the specific imaging modality and system requirements.

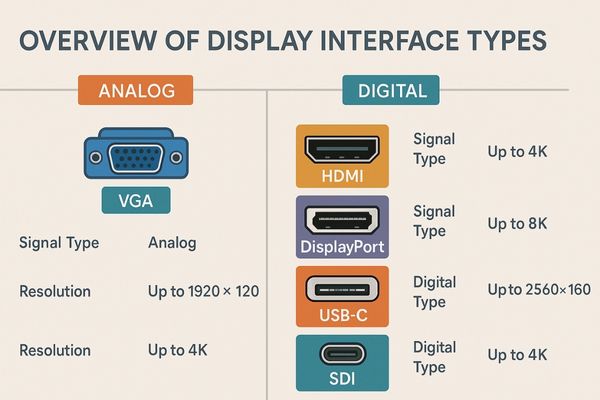

At the most basic level, display interfaces are divided into two categories: analog and digital. Analog interfaces, like VGA, transmit video as a continuous electrical wave. This method was standard for many years but is susceptible to signal degradation over long cables and interference from nearby electronic devices. Digital interfaces, including DVI, HDMI, and DisplayPort, transmit video as a stream of binary data—ones and zeros. This results in a pixel-perfect, lossless image reproduction, which is essential for modern diagnostic and surgical imaging. I have seen that in many hospitals, a mix of old and new equipment exists side-by-side. Therefore, a versatile monitor that supports both types of inputs is incredibly valuable. Our MS220S – 22" FHD Endoscopic Monitor, for example, is equipped with multiple inputs to ensure it can connect to a wide range of endoscopic systems, both old and new, providing flexibility during facility upgrades.

Key Digital Interfaces: HDMI, DisplayPort, DVI

Not all digital ports are created equal, and using the wrong one can limit your display’s resolution. This prevents you from seeing the full detail your medical imaging equipment is capable of providing.

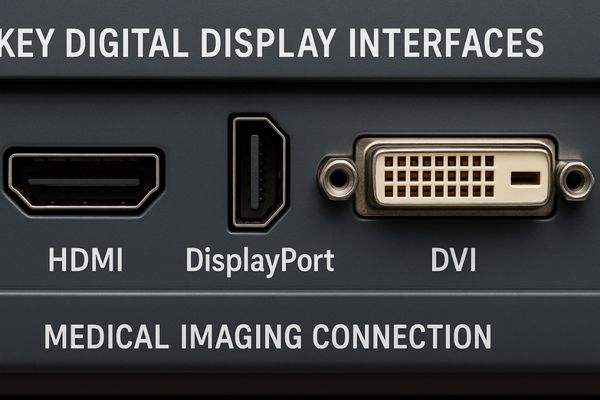

DisplayPort is ideal for high-resolution, multi-monitor setups. HDMI is a common and versatile choice for HD and 4K video. DVI is an older but still reliable digital standard for resolutions up to 2.5K.

I believe DisplayPort is becoming the preferred standard for high-end medical displays, and for good reason. It offers the highest bandwidth, which is necessary for driving ultra-high-resolution monitors without compromise. It also supports a feature called Multi-Stream Transport (MST)³, allowing multiple displays to be connected in a "daisy-chain" from a single port on the computer. This dramatically simplifies cabling for dual-monitor radiology workstations. HDMI is the most common interface and is very capable, especially in its newer versions which support 4K resolution at 60Hz. It is an excellent all-around choice for many applications. DVI is the oldest of the three but remains a reliable workhorse. It provides a stable, high-quality digital signal, but its bandwidth is typically limited to resolutions around 2560×1600. For the most demanding applications, like our MD120C – 12MP High-Precision Diagnostic Monitor with AI Calibration, DisplayPort⁴ is essential to transmit the massive amount of data required to render a diagnostically accurate image.

Analog Interfaces and Their Continued Role

Hospitals have a significant investment in older imaging equipment that still functions perfectly. Replacing all of it is often too costly, but its analog outputs do not connect to new digital-only displays.

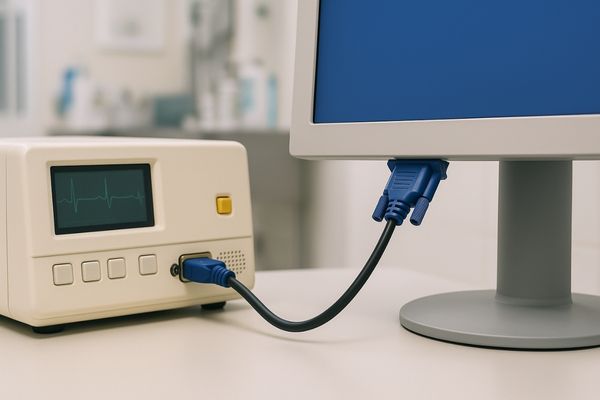

Analog interfaces like VGA and BNC remain relevant for connecting to legacy medical equipment such as older ultrasound machines or C-arms. Their support on modern displays ensures backward compatibility and extends equipment lifespan.

I often speak with hospital procurement managers who face this exact challenge. Even in our highly digital world, some workhorse medical equipment still relies on analog interfaces. Many older C-arms, ultrasound carts, and endoscopic video systems use outputs like VGA, S-Video, or BNC. These machines may be mechanically sound and diagnostically effective, making a full replacement financially impractical. This is why backward compatibility⁵ is a critical feature for new medical displays. A monitor that includes analog inputs acts as a bridge, allowing facilities to upgrade their visualization technology without having to overhaul their entire fleet of imaging devices at once. A high-quality monitor will have a superior Analog-to-Digital Converter (ADC)⁶ chip, which translates the incoming analog signal into a clean digital image with minimal quality loss. For example, our MS192SA – 19" HD Endoscopic Monitor includes these legacy inputs specifically to support a wider range of surgical systems, helping hospitals manage phased upgrades and maximize the return on their existing investments.

Considerations for Interface Selection in Medical Environments

Choosing a monitor based only on its resolution can lead to unforeseen problems. The interface you select affects system integration, signal integrity, and even the physical setup in a crowded operating room.

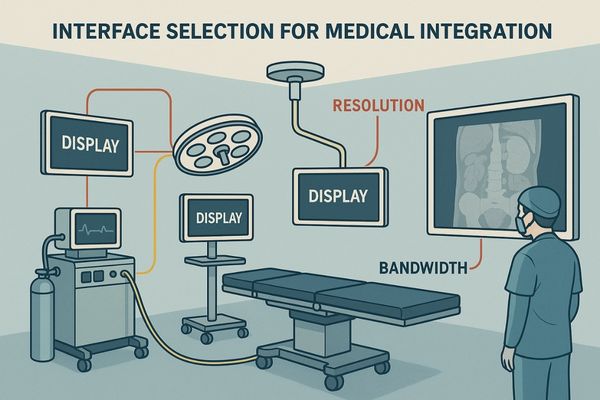

When selecting an interface, consider the required resolution and bandwidth, cable length limitations, the need for multi-display setups, and compatibility with existing medical imaging sources. These factors ensure reliable system integration.

I believe that interfaces are not just hardware choices; they are closely tied to system integration and information security. The first consideration is always bandwidth⁷. You must ensure the interface can support the native resolution and refresh rate of the monitor and the imaging source. Using an older HDMI version for a 4K surgical display, for instance, might limit you to a lower refresh rate, resulting in less fluid video. Cable length is another practical issue. Digital signals can degrade over long distances, so for large operating rooms where the source might be far from the display, you may need signal boosters or fiber optic extenders. Furthermore, the choice of interface can impact workflow. As I mentioned, DisplayPort’s daisy-chaining capability⁸ is a significant advantage for simplifying wiring at a radiology workstation. Finally, reliability is paramount. Even when using a standard interface, different manufacturers can have minor variations in their implementation. Using certified medical-grade monitors like the MS321PC – 32" 4K Surgical Monitor and high-quality cables helps guarantee compatibility and a stable connection.

Future Trends in Medical Display Connectivity

More devices, more cables, and more complexity are cluttering clinical spaces. This mess of wires is not only untidy but also a potential trip hazard and an issue for infection control.

Future trends point towards single-cable solutions like USB-C for data, video, and power. Additionally, wireless video transmission and fiber optics will become more prevalent for enhanced flexibility and signal integrity in demanding environments.

I am convinced that USB-C is set to simplify connectivity in many areas of medicine. Its ability to transmit DisplayPort video, high-speed data, and power over a single, reversible cable is a significant innovation. This will be particularly valuable for portable medical devices. Imagine a portable ultrasound probe connecting to a large diagnostic display for a detailed review, all while being powered by the same cable. This streamlines the process and drastically reduces cable clutter at the bedside or in an examination room. Beyond USB-C, we will see wider adoption of fiber optic cables⁹ for connecting equipment in operating rooms. Fiber is immune to electromagnetic interference, a major advantage in an OR, and can transmit 4K or 8K video signals over very long distances without any loss in quality. While wireless video technology is also advancing, its challenges with latency and security mean it will likely be reserved for less critical applications initially. Our MD51CHY – 34" 5MP Diagnostic Monitor for X-ray Imaging is an example of a display designed for modern workflows, where single-cable solutions like USB-C¹⁰ are becoming increasingly relevant.

Conclusion

Understanding display interfaces is crucial for building reliable medical imaging systems. From legacy analog to modern DisplayPort and future USB-C, the right connection ensures diagnostic clarity and system integrity. To equip your medical facility with displays offering versatile interface solutions, contact Reshin at martin@reshinmonitors.com.
