Can surgical monitors auto-detect and adjust resolution input?

Connecting a new device to your surgical display only to see a distorted or blank screen causes delays. This frustration interrupts the surgical workflow when focus is most critical.

Yes, modern surgical monitors can auto-detect and adjust resolution. They use advanced internal processors, called scalers, to identify the properties of an incoming video signal. The monitor then automatically scales the image to perfectly fit its native screen resolution without manual intervention.

In my experience, the ability of a display to adapt to different video sources¹ is not a luxury, but a fundamental requirement for a modern operating room. Surgeons need to switch between various imaging modalities, from a 1080p endoscope to a 4K camera system or even a live feed from another room. A monitor that requires manual configuration for each source introduces unnecessary complexity and potential points of failure. The goal of display technology should be to eliminate these variables, allowing the surgical team to focus entirely on the patient. This article will explain how automatic resolution detection² works, why it is so important for safety and efficiency, and what to look for in a truly intelligent surgical display³.

How does auto-detection of input resolution work in surgical monitors?

A mismatched video signal causes display errors during surgery. This forces your team to stop and troubleshoot the connection, interrupting a critical procedure and causing unnecessary stress.

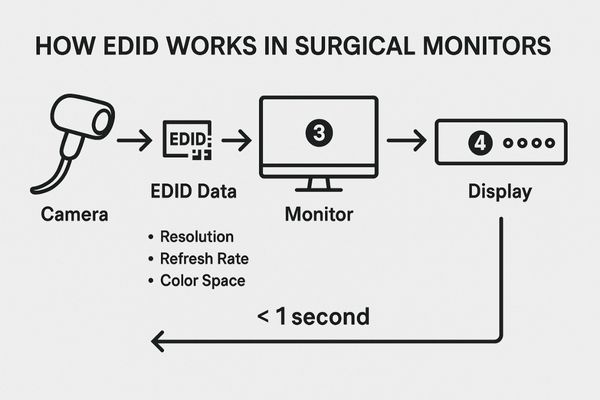

Auto-detection works through a communication protocol called EDID (Extended Display Identification Data). The monitor uses EDID to "ask" the connected source about its video signal properties. An internal scaler chip then processes this information and adjusts the image to fit the display.

The process of auto-detection⁴ is like a digital handshake between the monitor and the video source. When a device like an endoscopic camera is plugged in, the monitor reads its EDID⁵. This data contains a list of all the resolutions and refresh rates the source device can output. The monitor then compares this information to its own capabilities, which are stored in its firmware. Once the best possible signal format is identified, the monitor’s internal scaler takes over. The scaler is a powerful processor that resizes the incoming image to match the monitor’s native pixel grid. For example, if a 1080p signal is sent to a 4K display, the scaler intelligently quadruples the number of pixels to fill the screen while maintaining clarity. This entire process happens in milliseconds, ensuring that a stable and accurate image appears instantly. Our MS321PC monitor integrates a high-performance scaler⁶ to make this handshake fast and reliable, ensuring compatibility with a vast range of medical devices.

Why is automatic resolution adjustment crucial in operating rooms?

Switching between medical cameras or video feeds mid-procedure is common. Having to manually reconfigure the display each time is disruptive and takes valuable time away from the patient.

Automatic adjustment is crucial for workflow efficiency and patient safety. It eliminates setup delays by ensuring any connected device displays correctly without manual input. This allows surgeons to switch between sources like an endoscope and a C-arm instantly, maintaining uninterrupted focus.

In a dynamic operating room, time is a critical resource. The ability to simply plug in any device and have it work immediately is a huge advantage. Automatic resolution adjustment removes the need for a technician to navigate complex on-screen menus to find the right settings. This "plug-and-play⁷" capability is especially important in hybrid ORs⁸, where a single display might need to show video from an endoscope one moment and a PACS image the next. A monitor that can adapt on its own prevents workflow bottlenecks and reduces the cognitive load on the surgical team. Furthermore, it enhances safety. A blank screen or distorted image during a source switch can be disorienting. A seamless, automatic transition ensures the visual field remains stable at all times. Monitors like our MS270P are designed to handle these transitions flawlessly, making them a reliable hub for all visual information in the OR.

Manual vs. Automatic Resolution Setup

Are there risks of image distortion when scaling input signals?

You worry that letting a monitor automatically scale an image will degrade its quality. A soft, stretched, or pixelated image could easily hide the fine details you need to see.

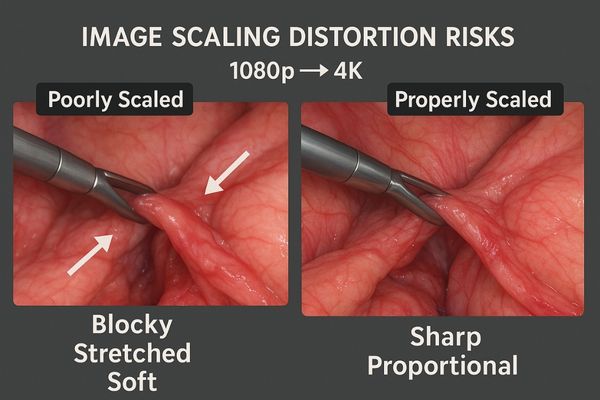

Yes, there are risks, especially when using a monitor with a low-quality scaler. Upscaling a low-resolution signal can cause softness or blurriness. Incorrect aspect ratio management can stretch or squash the image, distorting anatomy and creating a misleading picture.

Image scaling is a complex process. When a monitor scales an image, its processor must create new pixels (upscaling) or discard existing ones (downscaling). A basic scaler might use simple algorithms that result in noticeable artifacts. For instance, when upscaling a 1080p (Full HD) signal to a 4K screen, the scaler must invent three new pixels for every original one. A poor scaler will simply duplicate the original pixel, creating a blocky or soft appearance. A more advanced scaler uses sophisticated interpolation algorithms⁹ to analyze surrounding pixels and create a new pixel that creates a smoother, sharper result. Another major risk is aspect ratio distortion¹⁰. If a scaler fails to preserve the original 16:9 or 4:3 aspect ratio, the image will appear stretched or compressed, which can dangerously alter the perception of anatomical structures. On our large-format MS550P 4K monitor, where every detail is magnified, we use a medical-grade scaler¹¹ to ensure that all scaled images retain their sharpness and dimensional accuracy.

Do all surgical monitors support seamless resolution switching during surgery?

You switch from one video source to another, and the monitor goes black for several seconds. This delay breaks your concentration and introduces a moment of blindness during a critical procedure.

No, not all surgical monitors support seamless switching. Many lower-end displays will show a blank screen for two to five seconds while the electronics re-synchronize to the new signal. Premium monitors use advanced processors to switch between inputs and resolutions instantly.

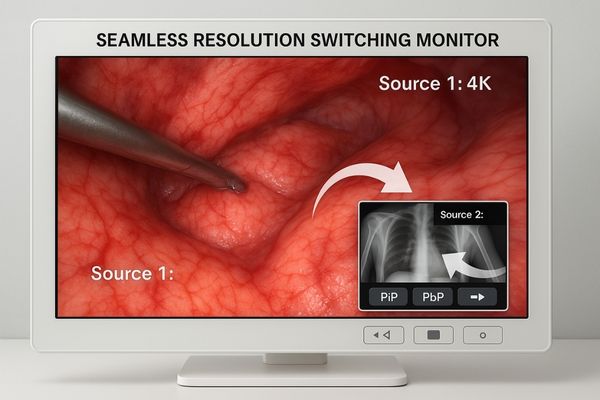

The blank screen you see when switching sources is caused by the monitor having to perform a new digital handshake. It has to detect the new signal, read its EDID, and re-configure its scaler and timing controllers. This re-synchronization process takes time. While a few seconds may not seem like much, in the context of surgery, it can feel like an eternity. It breaks the surgeon’s rhythm and can be a safety concern if it happens at a critical moment. True seamless switching technology¹² eliminates this blackout period. These advanced monitors often have multiple scaler engines or use a frame buffer. This allows them to process the new signal in the background and switch to it instantly, with zero downtime. This capability is the foundation for features like Picture-in-Picture (PiP)¹³ and Picture-by-Picture (PbP), which are essential in complex procedures. On monitors like our MS430PC, this technology allows surgeons to view multiple sources simultaneously without any interruption or delay.

Monitor Switching Technology Comparison

How does Reshin implement auto-resolution features in its surgical monitors?

You need a monitor that works reliably with all of your existing and future equipment. The fear of compatibility problems and technical glitches makes choosing a new display a stressful process.

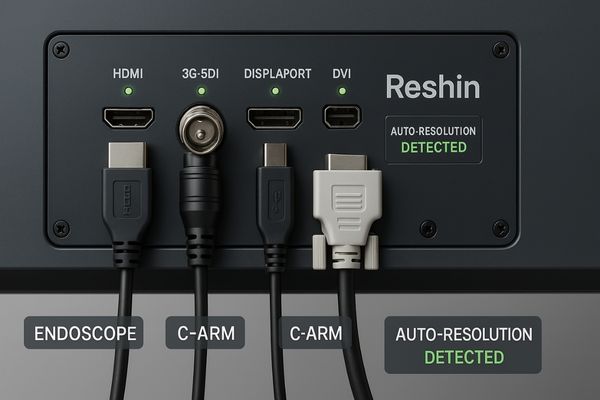

Reshin implements auto-resolution features using medical-grade scaler chips, robust EDID management, and intelligent firmware. Our system is designed for "plug-and-play" simplicity, ensuring our monitors instantly recognize, optimize, and display any standard medical video signal with maximum clarity.

Our approach to auto-resolution is built on a foundation of reliability and broad compatibility. We start by selecting high-performance scaler chips¹⁴ that can handle a wide range of resolutions, from standard definition to 4K and beyond. We then develop intelligent firmware¹⁵ that contains an extensive library of EDID information¹⁶, allowing our monitors to communicate effectively with virtually any medical device on the market. We conduct rigorous testing with camera systems from all major manufacturers to ensure out-of-the-box compatibility. Our firmware not only detects the resolution but also optimizes other parameters like color space and aspect ratio to ensure the image is displayed with the highest possible fidelity. This means the surgeon does not have to worry about settings. The monitor does the work for them. With a versatile model like our MS321PB, the goal is to provide a central display hub that works seamlessly with any device, ensuring the surgical team has a clear, stable, and accurate view at all times.

Conclusion

Automatic resolution detection is essential for modern surgical efficiency and safety. It ensures seamless compatibility between devices, eliminates workflow delays, and prevents visual disruptions, allowing surgeons to maintain their focus entirely on the patient. To integrate surgical displays with intelligent auto-resolution detection, contact Reshin at martin@reshinmonitors.com.
